Sparling Magnetic Flow Meters

Sparling Magnetic Flow Meters

Magnetic Flow Meters for the measurement of flows of water, wastewater, raw sewage, slurry applications, and cooling water.

Brand:  Sparling Instruments

Product Inquiry

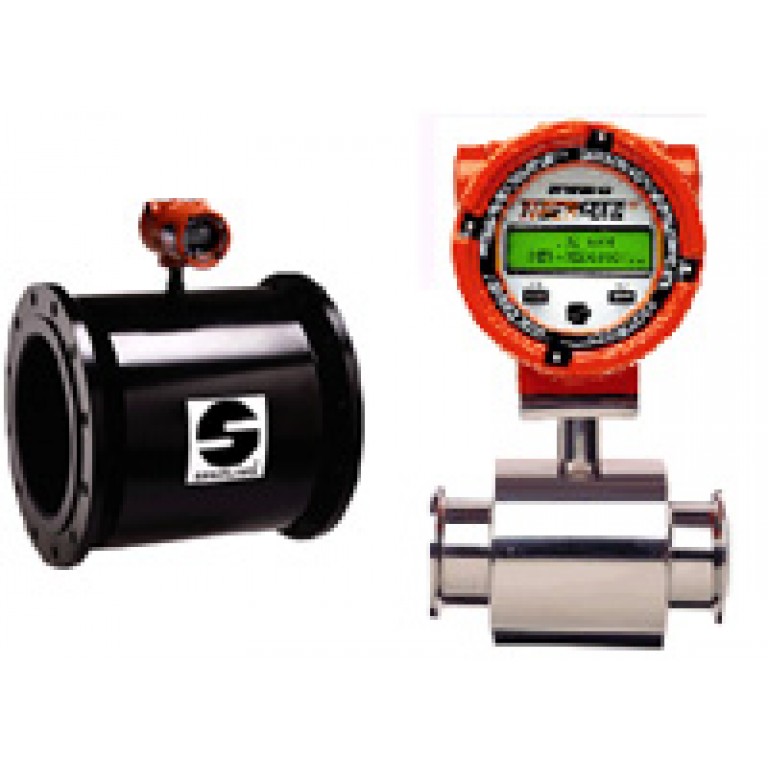

The TigermagEP electromagnetic flow meter is available in a wide range of sizes, electrodes and liner materials providing maximum flexibility to meet your process measurement needs. The integral housing is rated to both NEMA-4X/NEMA-7 ratings.

The TigermagEP™ electromagnetic water flow meter is also available with a NEMA-4X optional batch controller for an economical alternative in solving your batching needs. EEPROM-based memory holds the meters’ identity resident in the sensor providing instant compatibility between all TigermagEP modules – K factors, offset, meter size are all retained.

Key features of the Tigermag EP electromagetic flow meter include:

  • Mounting Style: Flanged or Wafer
  • Display: With display or ‘blind’
  • Wide range of sizes: from 0.1″ to 72″ pipe diameter
  • Liners: FEP/PTFE, Polyurethane, Hard Rubber, and Neoprene.
  • A solid ceramic tube for high temperatures and pressures is also available.
  • Electrodes: 316 Stainless Steel, Hastelloy C, Titanium, Tantalum, Platinum, Fused Platinum, Zirconium and Monel.
  • Bullet nose versions are available in all metals.
  • Communications: Programmable with Mag-Command, Modbus, Hart, 4-20 mA, RS-232, or RS-485.
