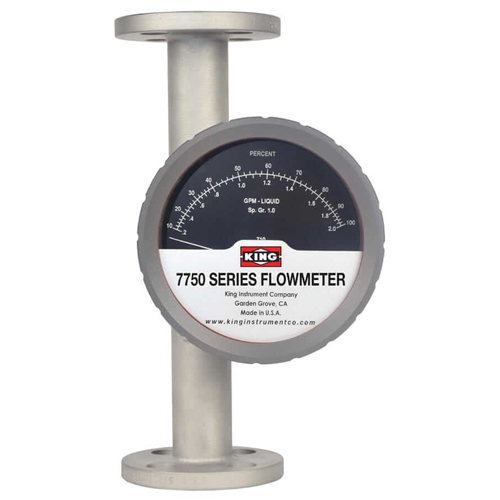

7750 Series – Stainless Steel Tube Flowmeter
These 316L stainless steel meters feature flange connections, all welded construction (no O-rings), and an end to end length of 250mm. A float and tapered tube design provides longer, more linear scales. A 4-20mA transmitter option adds to its versatility.
DESCRIPTION
| Overall Length | 250 millimeters | ||
| Metering Tube | 316L SS | ||
| Internal Components | 316L SS | ||
| Inlet/Outlet Fittings | 150# or 300# flange, vertical | ||
| O-Ring | All welded construction, no O-rings or gaskets |
||
| Indicator Housing | Die-cast aluminum / powder coated with chemfilm base (RoHS compliant) |
||
| Flange Material | 316L SS | ||
| Scale | 120 mm direct reading, detachable | ||
PERFORMANCE
| Capacities | Water | 33 GPH to 16.5 GPM | |
| Air | 2.2 SCFM to 76 SCFM | ||
| Scale | 120 mm direct reading, detachable | ||
| Accuracy | ± 3% of full scale flow | ||
| Turndown | 10:1 | ||
| Repeatability | 1% | ||
| Maximum Temperature | 400° F (204° C) | ||
| Temp F | 150# | 300# | |
| 200° | 225 psi | 600 psi | |
| 300° | 200 psi | 540 psi | |
| 400° | 180 psi | 515 psi | |
| Maximum Pressure | See 150# and 300# SS flange class above | ||
| Ambient Temperature | -40° F to 400° F (-40° C to 204° C) | ||
OPTIONS
| Alarm | Single or dual, Inductive Slot Sensor |
| 4-20 mA transmitter | |
| Certified Calibrations | Conform to ISA RP 16.6 |
| CRNs | All Canadian provinces |
| Scales | Any volumetric unit |
