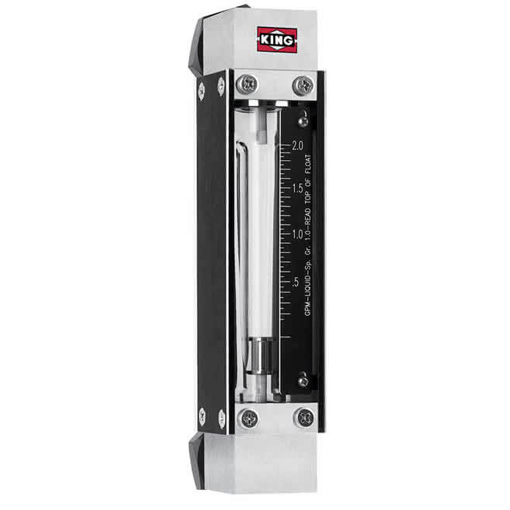

King Instruments 7450 Series – Glass Tube Flowmeter

King Instruments 7450 Series – Glass Tube Flowmeter

Variable Area (Rotameter) Flow Meters with Side Plate Construction and 75 mm or 150 mm borosilicate glass tubes

Brand:  King Instruments

Product Enquiry

Description

Side plate style meters with 75 mm or 150 mm borosilicate glass tube and 316L stainless steel or brass connections. Valves optional. Available with Hastelloy® C-276 construction for greater chemical resistance.

PERFORMANCE

Capacities  Water 0.48 to 7.4 GPM
Air 2 to 20 SCFM
Scale  75 mm (3”), 150 mm (6”) direct reading, detachable
Accuracy  ± 5% of full scale flow, 75 mm
± 3% of full scale flow, 150 mm
Turndown  10:1
Repeatability  1%
Maximum Temperature  200° F (93° C)
Maximum Pressure  200 psig
Ambient Temperature  33° F to 125° F (1° C to 52° C)
