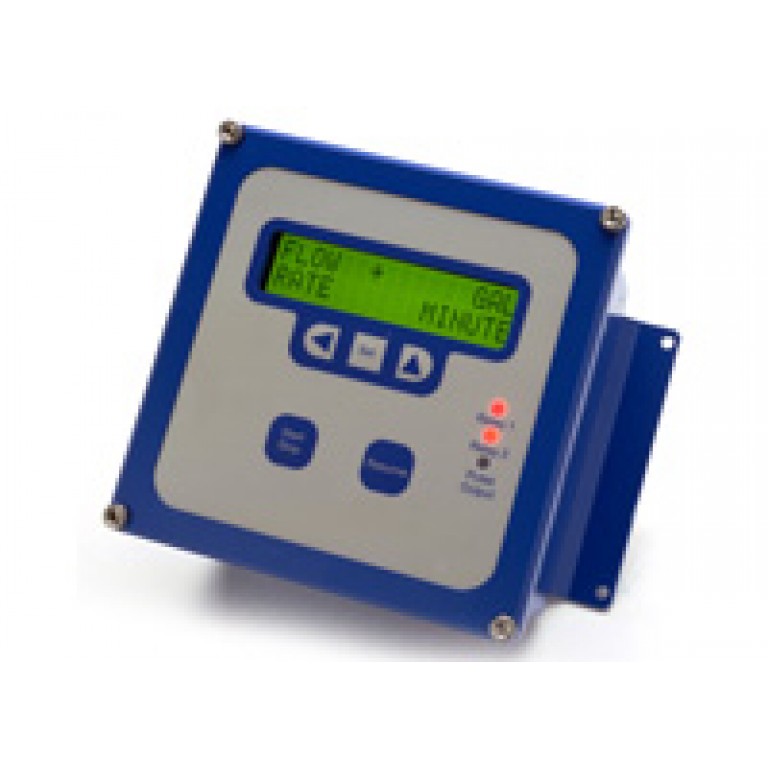

Seametrics FT520 Batch Controller

Seametrics FT520 Batch Controller

Batch Controller & Flow Rate/Totalizer
Brand: Seametrics

Product Enquiry

Description

The FT500-Series is a batching flow processor with additional output controls. It is designed for use with Seametrics flow meters and flow sensors, as well as other manufacturer’s products which have frequency output proportional to flow. In addition to batch functions, the FT500- Series indicates flow rate, and other data in large 3/8” (9.66 mm) digits on an easily-read, backlit display. Units of measure are user selectable, and range from milliliters per second to millions of gallons per day. The unit can be 110 Vac powered with a standard 3-wire cord (included), 220 Vac powered (optional), or DC powered through an internal terminal strip . An analog output of 4-20 mA is available both in active and passive loop configuration, and in 0-5 Vdc or 0-10 Vdc outputs, and can be used in applications such as flow rate logging. Two programmable pulse scaled outputs are also standard, and can be used, for example, to provide proportional chemical feed with a pulse-responsive metering pump.

  • Large backlit alphanumeric display
  • Built-in 4-20 mA analog output
  • User-scaled pulse output for chemical metering pumps or telemetry
  • Two relay outputs for staged shutoff (batching) or dual setpoints (alarm option)
  • Rugged cast aluminum housing
  • Wall or panel mounting
