Stainless Steel Turbine Meter for Liquid Applications

Brand:  Seametrics

Product Enquiry

Description

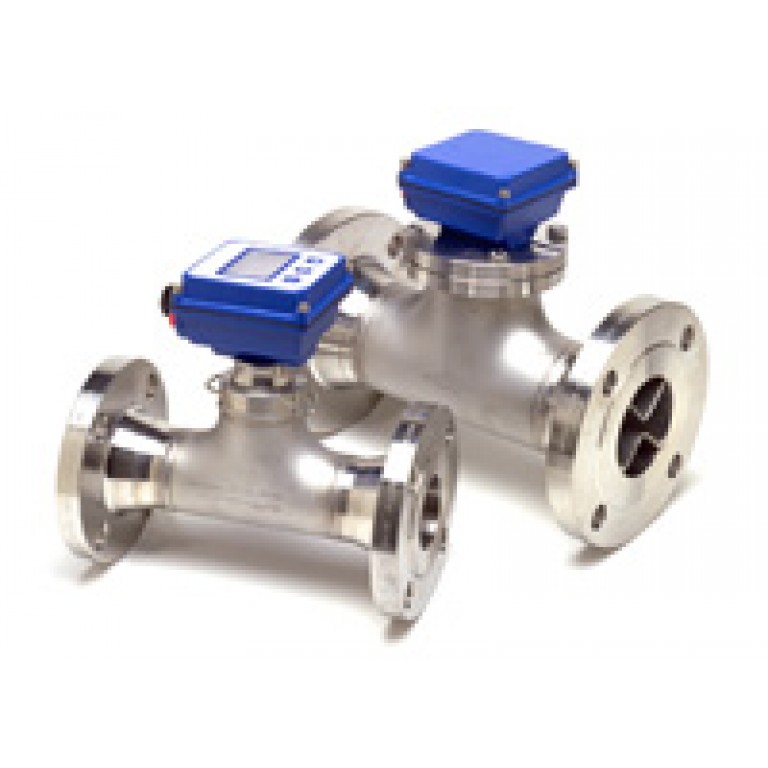

WTS bodies are machined from stainless steel tubing. The turbine insert on WTS meters is machined from a stainless steel casting. This unique system of 3” to 8” turbine meters uses just one moving part, a precision helical rotor. Rotation of the rotor is electronically detected and processed. The high-quality jewel bearings and shafts minimize friction while providing long life in non-lubricating fluids. The entire rotor assembly can be easily removed for field service without removing the meter from the pipe.

  • Stainless-steel body turbine flow meter
  • In-line, individually-calibrated turbine meter maximizes accuracy
  • Turbine rotor is the only moving part, optimizing low-flow performance
  • Solid-state pickup
  • Electronic register can be meter-mounted or remote
  • Available with blind pulse or 4-20 mA output
  • Lightweight, corrosion-resistant 304SS (or optional 316SS) body
  • Flanges standard 3″ and above (2″ has female NPT threads)
