Insertion Magnetic Flow Meters for Liquid Applications
Brand: Seametrics

Product Enquiry

Description

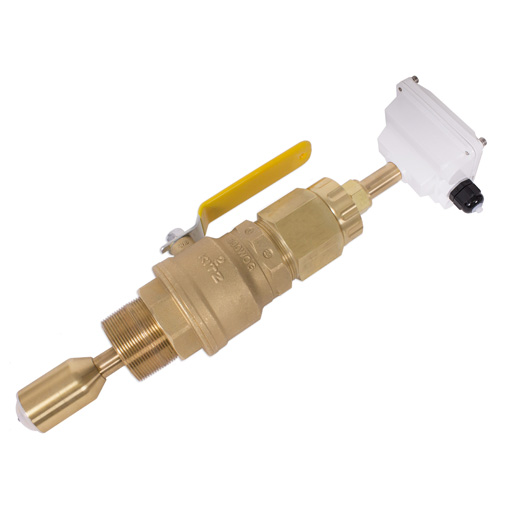

The EX100/200-Series are adjustable depth insertion magmeters that fit 3” to 48” pipe (up to 72” optional). The complete lack of moving parts of the EX100/200-Series is the source of its reliability. Brass and stainless steel models withstand a variety of temperature, pressure, and chemical conditions. The EX-Series has no rotor to stop turning in dirty water and there are no bearings to wear out. Like all magmeters, when used in chemical injection applications, these meters should be installed upstream of the chemical line (or far enough downstream to allow complete mixing of fluids before the meter). Adapters mate with standard 1-1/2” (11x/21x) or 2” (15x/25x) FNPT threaded fittings such as saddles and weldolets which may be purchased either locally or from Seametrics.

  • Isolation valve allows installation and removal under pressure
  • Useful in large water utility pipe and other applications where shutdown is not an option
  • EX150 fits pipe from 3″ to 10″
  • EX250 fits pipe from 10″ to 48″
  • Meter extends only about 1/8 of pipe diameter, minimizing potential for clogging with debris
  • In most applications, installation tool not necessary due to small tube diameter
  • Available in brass or 316 stainless steel
  • Standard valve material is brass, with stainless optional
