Description

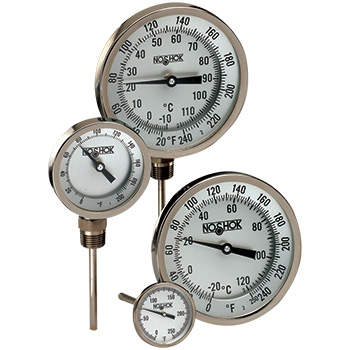

• Highest quality thermometers available on the market
• Easy to calibrate with 1/16″ Allen key
• Corrosion-resistant 304 stainless steel case and bezel provide a hermetic seal to prevent lens fogging and moisture damage
• Single °F, single °C, and dual scale options available
• Accuracy: ±1% full scale, Grade A, ASME B40.3
• 2″, 3″ and 5″ sizes – center back and bottom connections
• 2″ Dial Size – 1/4″ NPT; 3″ & 5 ” Dial Sizes – 1/2″ NPT
• Standard stem lengths 2-1/2″ through 42″
• Minimum or maximum indicating pointers are available in 3″ and 5″ sizes
• Highly sensitive bimetallic helix coil is heat-treated for stress relief, and silicone-coated to minimize pointer vibration and maximize heat transfer and response time
• 360° groove around stem is a visual reference to show minimum immersion point
• Made in the U.S.A.

Note: Thermowells are recommended for pressure, corrosive fluids and high velocity
applications.
