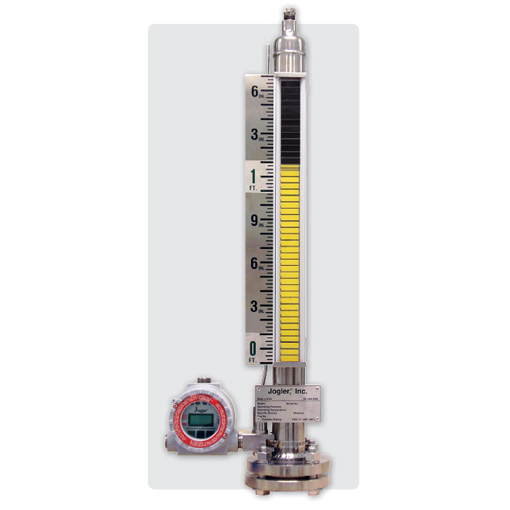

Jogler Magnetic Level Gauge

Jogler Magnetic Level Gauge

Magnetic Level Gauges to measure and control liquid levels in any application.

Brand: Jogler

Product Enquiry

Description

Jogler Magnetic Level Gauges are a safe, economical way to measure and control liquid levels in any application. They are suitable for high temperature and/or pressure, full vacuum, low-specific gravity liquids, and more. Jogler magnetic gauges can be used with vessels of almost any size and shape and with any process fluid.

Jogler Magnetic Level Gauges have three components:

·       Float Chamber

·       Internal Magnetic Float

·       External Magnetic Indicator

FLOAT CHAMBER

The float chamber is made of nonmagnetic material and is attached to the tank or vessel so that the liquid level inside the float chamber and host vessel is the same. Float chambers are available in a wide range of materials and styles.

MAGNETIC FLOAT

The magnetic float, inside the float chamber, is engineered to the specific gravity of the process fluid, so that it floats on the surface of the liquid. It contains a series of powerful magnets that actuate the external level indicator. All floats have 360-degree rotating magnetic fields.

INDICATORS

The hermetically sealed indicator unit, which is mounted on the outside of the Gauge, contains a magnetic indicator that interlocks magnetically with the float inside the chamber. As the float moves up and down with the liquid level, the magnetic indicator element tracks the changes in level. An external scale, mounted on the indicator unit, permits quick determination of liquid level.

There are three styles of indicators: the single tracker, the standard flag, and the wide bar graph. All indicators styles provide the highest visibility of any indicator on the market and are available in a 316SS or anodized aluminum enclosure.
